The lab has seven climatic chambers and five ovens, with a capacity from 22L to 400L and various temperature and relative humidity ranges. Among them are one 225L explosion-proof climatic chamber and one 70L elevator oven. The key specifications are shown below.
Climatic chambers:

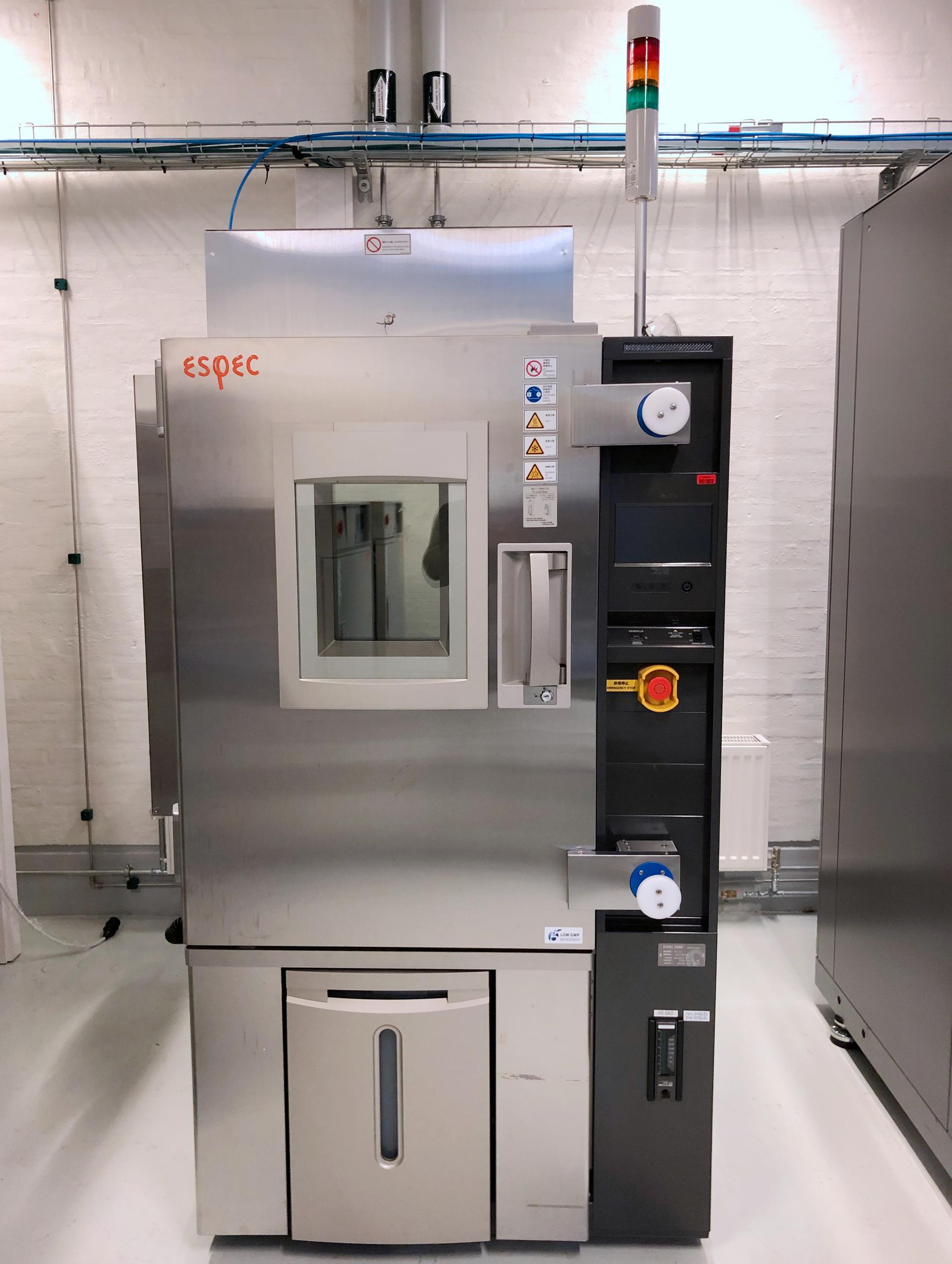

- (1pc) 225L, -40 to + 100°C, RH 20% to 98%, Light tower alarm, N2 gas injection, H2 and temp. detection
- (1pc) 225L, -40 to + 150°C, RH 20% to 98%
- (1pc) 400L, -40 to + 150°C, RH 20% to 98%
- (1pc) 22L, -60 to + 150°C, T ramp: 3/2 k/min, RH 30% to 98%
- (1pc) 64L, -40 to + 150°C, T ramp: 2/1 k/min, RH 30% to 98%
- (1pc) 64L, -60 to + 150°C, T ramp: 2/1 k/min, RH 30% to 98%
Specifications of the five ovens:
- (3pcs) 216L, Tamb to 300°C max
- (1pc) 216L, Tamb to 300°C max, explosion vent
- (1pc) 70L, -65 + 205°C max, elevator oven: 5 minutes recovery
Besides the above climatic chambers and ovens, different power supplies and equipment are available for providing electrical stresses and in-situ or offline measurements. Moreover, a Highly Accelerated Lifetime Testing (HALT) chamber is available in another standalone testing site which has the following specifications:
- Up to 70°C/min temperature change + humidity + six-degree vibration 5 – 70 gRMS
- +250°C to -100°C temperature range
- Inner working space: 889mm*889mm*889mm (lower table position) or 635mm*635mm*635mm (upper table position)
