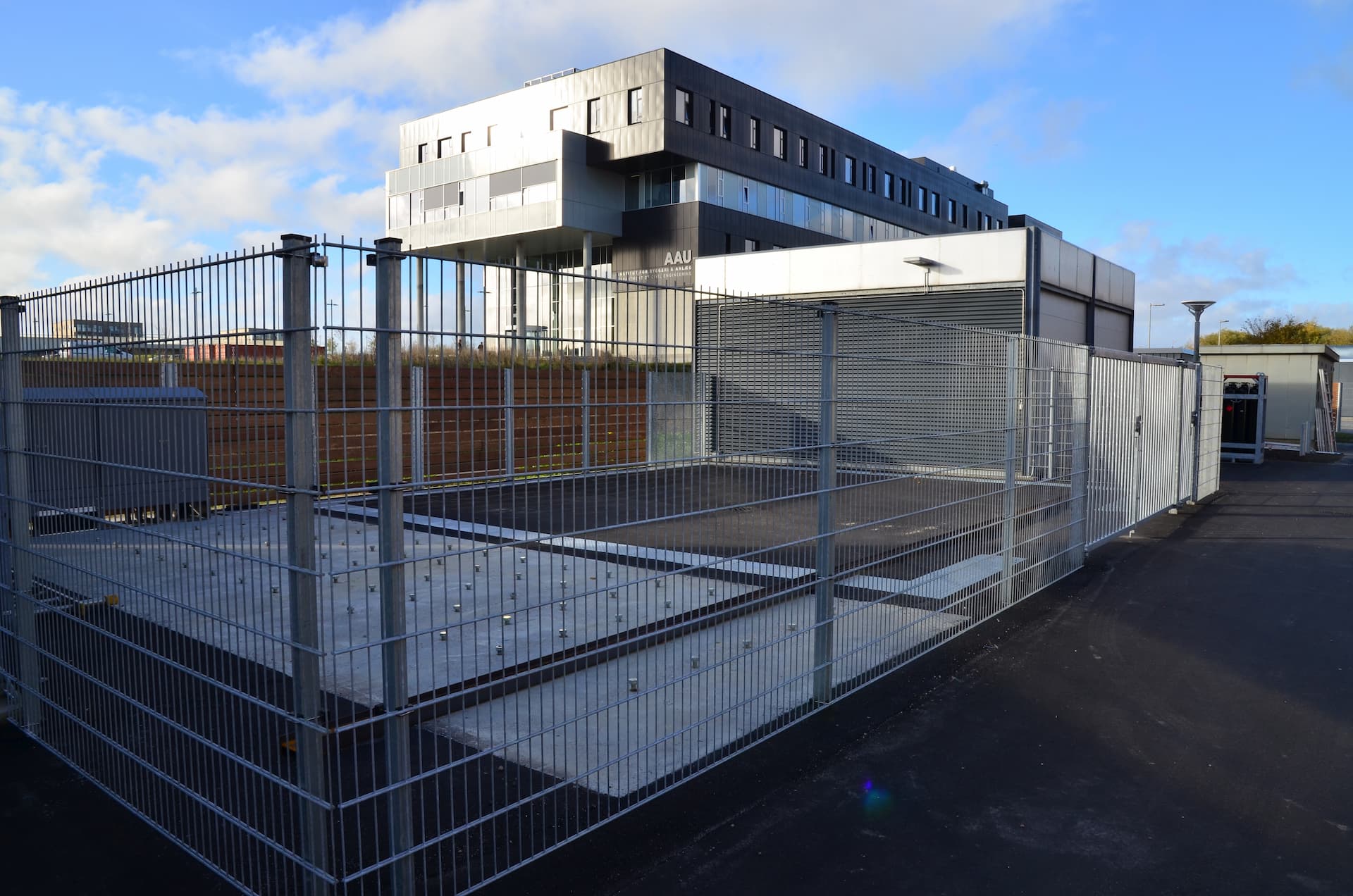

PLATFORM 1 - 300 M2

The platform comprises 300 m2 fenced-in area covered with concrete tiles and 60 m2 of storage room.

FACILITIES

• Cooling water
• A wide range of gasses: oxygen, hydrogen carbon monoxide, nitrogen, carbon dioxide, helium, methane, etc.
• Central heating
• De-Ionised water
• Compressed air
• Power: 650 Ampere

FEATURES & SERVICES

Examples of the services offered:

• Testing of ready made units that require power
• Testing of PV panels

Drawing of Platform 1

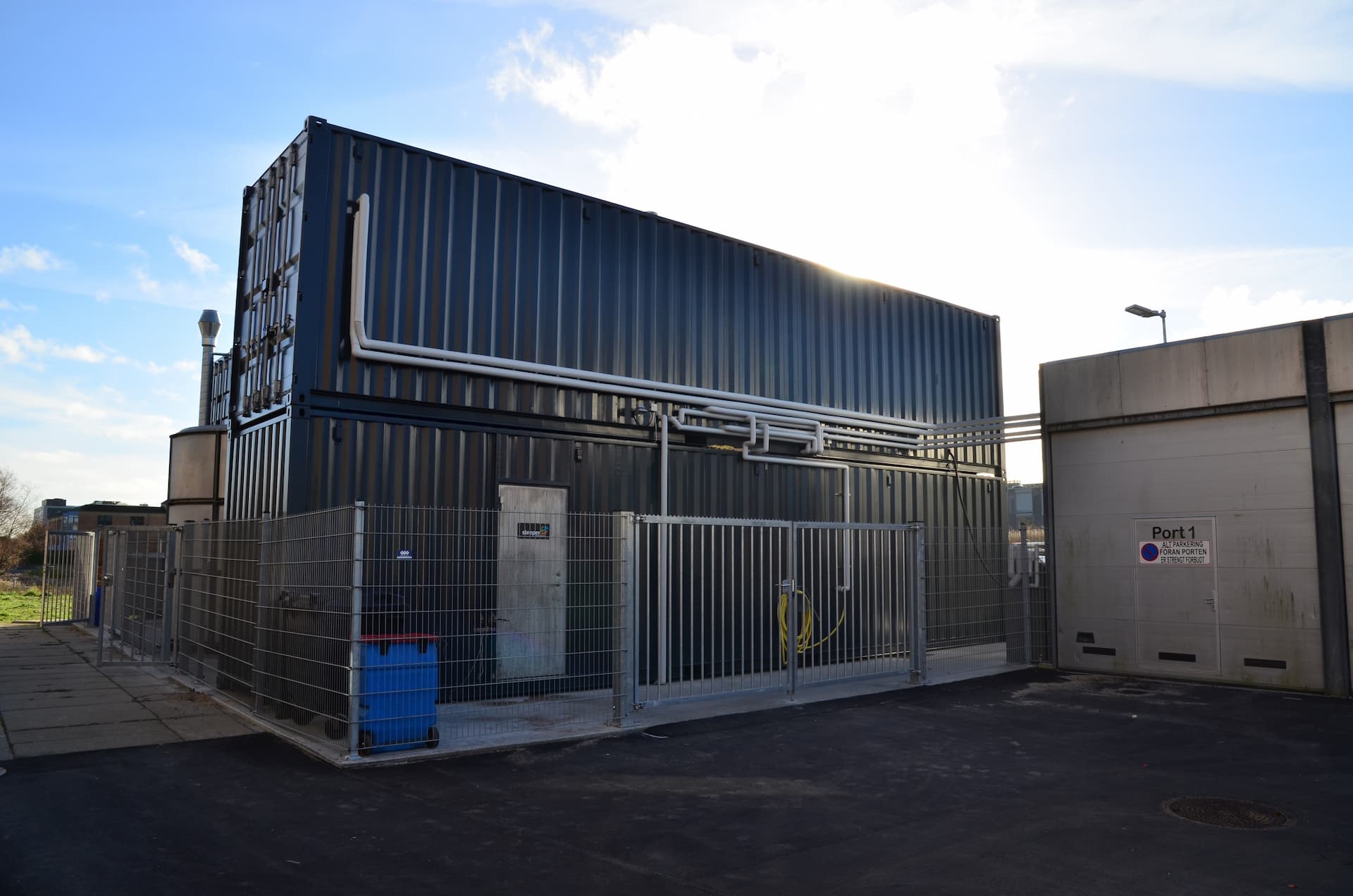

PLATFORM 2 -  100 M2

This platform measures 14 x 8 metres and the floor consists of a concrete foundation, which can support 1.5 metric tonnes on a 10 metre crane. In addition, the whole area is fitted with oil separation equipment.

FACILITIES

The dimensions are as follows:

• 100 Amps
• Cooling 50 kW thermal power

FEATURES & SERVICES

For instance, this platform can be used for the suspension of a wind turbine.

Drawing of Platform 2

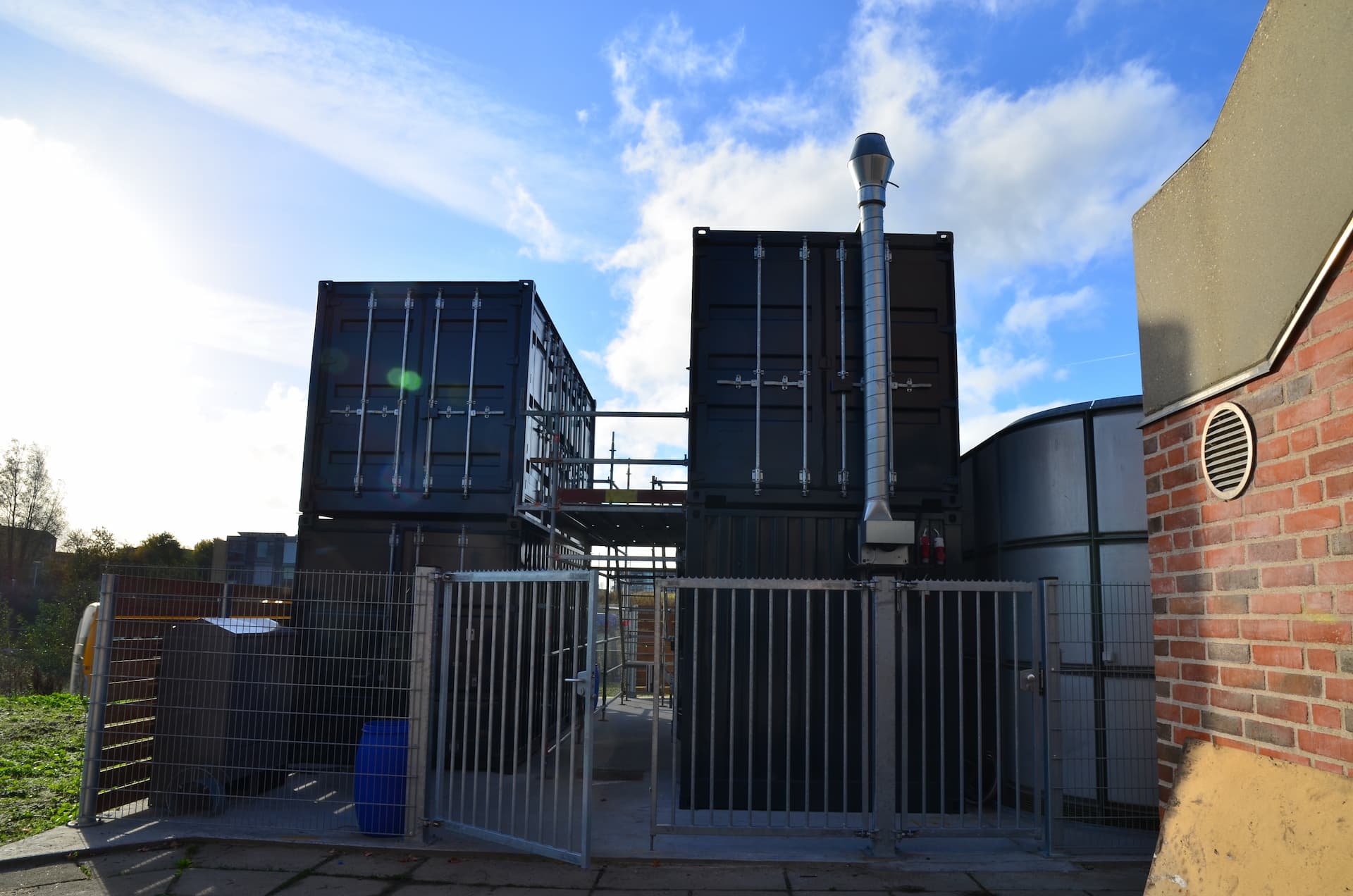

PLATFORM 3 - BIO FUEL

FACILITIES

• Electrical panel: 63 Amps CEE, 32 Amps CEE, 16 H CEE
• 4 Power sockets 230 V
• Double PDS socket
• Industrial water, cold
• Compressed air
• Cooling water, 50 kW
• Oil separator (drain connected to sand oil-water separator)

Drawing of Platform 3
